stainless steel mild steel metal sheet laser cutting machine TQL-LCY620-2513 manufacturer from China Wuhan Tianqi Laser Equipment Manufacturing Co.,Ltd.

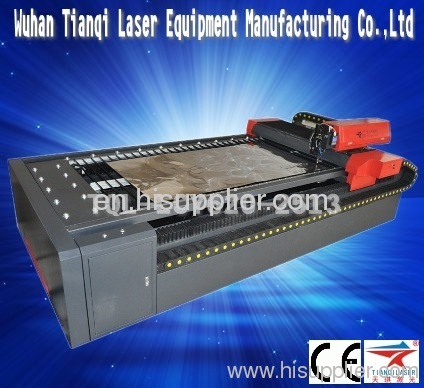

stainless steel mild steel metal sheet laser cutting machine

Payment Terms:	T/T,L/C
Place of Origin:	Hubei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TQL-LCY620-2513

Production Capacity: 4000SETS/YEAR

Delivery Date: 15-25 WORKING DAYS

Laser Type: YAG

Means of Transport: Ocean

Packing: WOODEN CASE

Application: Laser Cutting

Brand Name: TIANQI LASER

High precision: an precise cutting for various precision part, arts and crafts.
Fast speed: 100 times higher than linear cutting

Machine features For YAG Laser:

1. High precision: an precise cutting for various precision part, arts and crafts.

2. Fast speed: 100 times higher than linear cutting

3. Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process

4. High performance/price ratio: the price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch

5. Low use cost: only USD2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour)

6. Low follow-up maintenance cost: only 1/10-1/15 of the similar CO2 laser cutting machine and 1/3-1/4 the equivalent NC Punch

7. Steady performance: as a mature laser apparatus, YAG Laser is suitable for most metal manufacturing and processing industry

8. Metal plate Quality cutting thickness:0.1mm-8mm,

Compared with NC Punch, YAG Laser has many advantages

(1) Any complicated structure which can be drawn on the computer also can be manufactured by YAG Laser.

(2) If the product image has been drawn on the computer, the product can be manufactured immediately without opening mould technology. It can be used to develop new products rapidly and reduce cost considerably

(3) Both plan cutting and surface trimming can be finished by automatic tracing system of YAG Laser.

(4) YAG Laser can accomplish the complicated process which is hard to achieve by NC punch

(5) The machine can make high grade production with smooth surface, which is hard to obtained by NC punch
(6) Round pipe & Square pipe cutting can be finished by our YAG Laser, which can not be processed by CNC punching machine

(7) Molding body (less than 0.5 meters thick) which need the slot-hole processing can be easily achieved by YAG Laser, which can not be finished by CNC punching machine.

YAG Laser Application

YAG Laser has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, spectacle frame, etc, which have brought customers a high ratio of interest.

YAG Laser Applicable materials:

Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium sheet and pipe.

Technical parameter for YAG Laser:

Model:	TQL-LCY620-4115	TQL-LCY620-3015	TQL-LCY620-2513
Processing scale(length*width):	4100mm*1500mm	3000mm*1500mm	2500mm*1300mm
Cutting thickness:	0.2mm-8mm	0.2mm-8mm	0.2mm-8mm
Max. output power:	620W	620W	620W
Laser wavelength:	1064nm	1064nm	1064nm
Pulse frequency:	1--300HZ	1--300HZ	1--300HZ
Min. line width:	0.15mm	0.15mm	0.15mm
Electrical source:	380V/50HZ/100A	380V/50HZ/100A	380V/50HZ/100A
X,Y,Z axis geometric positioning accuracy:	±0.08mm/1000mm	±0.08mm/1000mm	≤±0.08mm/1000mm
X,Y,Z axis re-orientation accuracy:	≤±0.04mm	±0.04mm	≤±0.04mm
Machine weight:	4200kg	4000kg	3780kg
Cooling mode:	7P water-cooling	7P water-cooling	7P water-cooling
Max. cutting speed(use N2 gas):	4.5m/min	4.5m/min	4.5m/min
