Mild steel metal sheet laser cutting machine laser cutter TQL-LCY620-3015 manufacturer from China Wuhan Tianqi Laser Equipment Manufacturing Co.,Ltd.

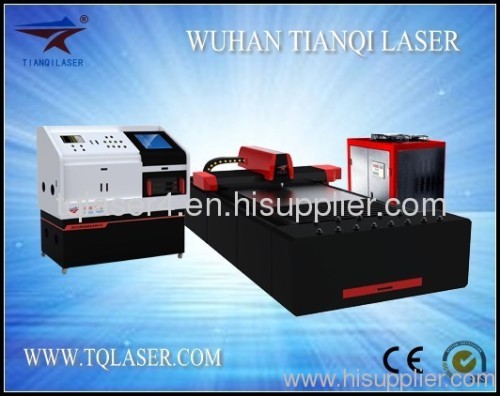

Mild steel metal sheet laser cutting machine laser cutter

Payment Terms:	T/T,L/C
Place of Origin:	Hubei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TQL-LCY620-3015

Production Capacity: 80 sets/month

Delivery Date: 15-25 working days

Laser Type: YAG

color: red and black

Means of Transport: Ocean

Packing: wooden case

Application: Laser Cutting

Brand Name: TIANQI LASER

Application
Laser Machine has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal sheet

Laser Cutter - High Precision Metal Laser Cutter

Machine features For Laser Cutter:

1. High precision: an precise cutting for various precision part, arts and crafts.

2. Fast speed: 100 times higher than linear cutting

3. Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process

4. High performance/price ratio: the price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch

5. Low use cost: only USD2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour)

6. Low follow-up maintenance cost: only 1/10-1/15 of the similar CO2 laser cutting machine and 1/3-1/4 the equivalent NC Punch

7. Steady performance: as a mature laser apparatus, Laser Cutter is suitable for most metal manufacturing and processing industry

8. Metal plate Quality cutting thickness:0.1mm-8mm,

Compared with NC Punch, Laser Cutter have many advantages

(1) Any complicated structure which can be drawn on the computer also can be manufactured by Laser Cutter .

(2) If the product image has been drawn on the computer, the product can be manufactured immediately without opening mould technology. It can be used to develop new products rapidly and reduce cost considerably

(3) Both plan cutting and surface trimming can be finished by automatic tracing system of Laser Cutter .

(4) Laser Cutter can accomplish the complicated process which is hard to achieve by NC punch

(5) The machine can make high grade production with smooth surface, which is hard to obtained by NC punch
(6) Round pipe & Square pipe cutting can be finished by our Laser Cutter , which can not be processed by CNC punching machine

(7) Molding body (less than 0.5 meters thick) which need the slot-hole processing can be easily achieved by Laser Cutter , which can not be finished by CNC punching machine.

Laser Cutter Application

Laser Machine has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, spectacle frame, etc, which have brought customers a high ratio of interest.

Laser Cutter Applicable materials:

Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium sheet and pipe.

Technical parameter for Laser Cutter :

Model:	TQL-LCY620-4115	TQL-LCY620-3015	TQL-LCY620-2513
Processing scale(length*width):	4100mm*1500mm	3000mm*1500mm	2500mm*1300mm
Cutting thickness:	0.2mm-8mm	0.2mm-8mm	0.2mm-8mm
Max. output power:	620W	620W	620W
Laser wavelength:	1064nm	1064nm	1064nm
Pulse frequency:	1--300HZ	1--300HZ	1--300HZ
Min. line width:	0.15mm	0.15mm	0.15mm
Electrical source:	380V/50HZ/100A	380V/50HZ/100A	380V/50HZ/100A
X,Y,Z axis geometric positioning accuracy:	±0.08mm/1000mm	±0.08mm/1000mm	≤±0.08mm/1000mm
X,Y,Z axis re-orientation accuracy:	≤±0.04mm	±0.04mm	≤±0.04mm
Machine weight:	4200kg	4000kg	3780kg
Cooling mode:	7P water-cooling	7P water-cooling	7P water-cooling
Max. cutting speed(use N2 gas):	4.5m/min	4.5m/min	4.5m/min
